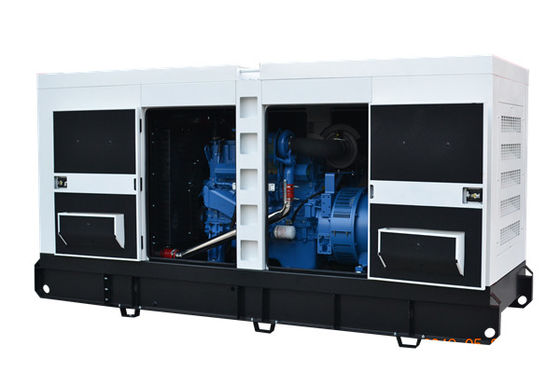

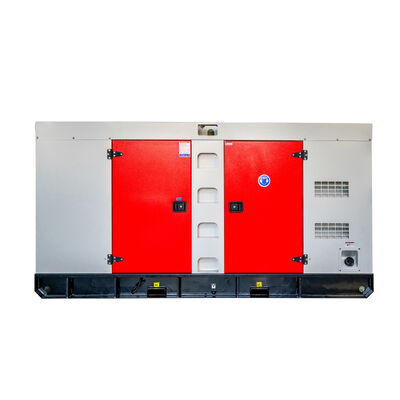

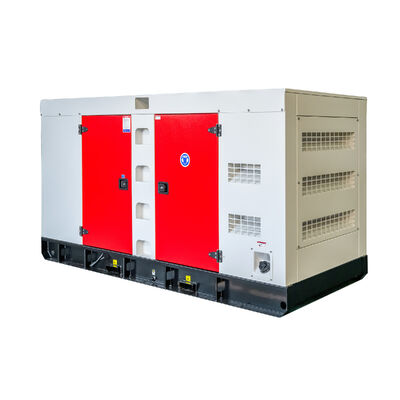

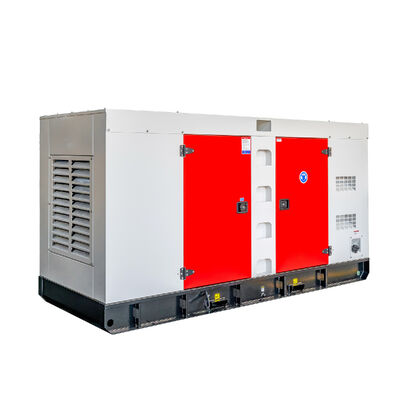

Name: Customized Factory Price Open/Silent Type SDEC Diesel Generator 100KW/125KVA Power Supply Water Cooling
Brand: FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
SKU: 4HTAA4.3-G22
Price: 2,099.00 USD
Availability: InStock

Характеристики Галерея Характер продукции Спросите цитату

Характеристики

Скорость: 1500 об / мин

Частота: 50/60 Гц

Номинальная мощность: от 5кВт до 2000кВт

Тип выхода: Третья фаза

Тип: Открытый или бесшумный (супер бесшумный)

цвет: По вашему требованию, по индивидуальному заказу

Выделить:

100KW SDEC diesel generator

water cooling diesel generator

silent type SDEC generator

Основная информация

Место происхождения: Китай

Фирменное наименование: SDEC

Номер модели: 4HTAA4.3-G22

Оплата и доставка Условия

Упаковывая детали: Фанера

Время доставки: 10work Days

Условия оплаты: Л/К, Т/Т

Поставка способности: 50 комплектов в месяц

Галерея

Customized Factory Price Open/Silent Type SDEC Diesel Generator 100KW/125KVA Power Supply Water Cooling

Характер продукции

Customized Factory Price Open/Silent Type SDEC Diesel Generator 100KW/125KVA Power Supply Water Cooling

Product Overview

High Quality Open/Silent Type SDEC Diesel Generator 90KW/113KVA Backup Power Supply Water Cooling

Key Features

Equipped with famous brushless alternator brands: Leroy Somer, Marathon, BOBIG, Mecc Alte
50°C radiator with fan for optimal engine cooling during extended operation
Advanced control systems including ATS, remote control, and parallel operation
High-quality steel canopy construction (2MM to 6MM thickness)
High-density sound-absorbing material for effective noise insulation and fireproofing
12V/24V DC battery with charger and connecting wires
10-12 hours fuel tank with fuel indicator for continuous operation
High protection class control box (IP55) with waterproofing, electric leakage protection, and breaker
Turn-back type air inflow & outlet design reduces noise and improves engine efficiency
Practical design with forklift access, water and oil outlets for easy maintenance
Double open doors on both sides for comprehensive engine and alternator access
Available in Silent, Super Silent, Soundproof, Trailer, and Container types
Compliant with major standards: GB/T2820, ISO8528, IEC34, CE, EPA Tier4

Basic Specifications

Power Range: 100KW
Alternator Options: BOBIG/SDEC
Available Types: Open type and Silent type

Engine Specifications

Cooling Method: Closed water cooling
Starting Method: Electric start
Rated Speed: 1500 RPM

Alternator Specifications

Brand: BOBIG
Rate Output: 100KW-110KW / 125KVA-138KVA
Rate Voltage: 230V/400V
Rate Frequency: 50Hz
Power Factor: 0.8
Phase: 3-phase, 4-wire
Connection: Y or other type connection
Excitation: Harmonic excitation or phase compound or brushless
Voltage Regulation: Automatic/Manual

Technical Specifications

General Information	Prime Power	Standby Power
Rated Power (kVA)	125	138
Power Rating (kW)	100	110
Frequency (Hz)	50
Engine Model	4HTAA4.3-G22
Engine Speed (RPM)	1500
Phase	3
Power Factor	0.8
Control System	Digital
Rated Voltage (V)	400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time	≥ 8h @ 75% load

PRP (Prime Power): Available for unlimited annual hours in variable load applications according to GB/T2820-97. Includes 10% overload capability for 1 hour within 12-hour operation.

ESP (Standby Power): Supplies emergency power during utility power interruptions. No overload, utility parallel, or negotiated outage operation capability available.

Dimensions and Weight

Model	BSD138 (Open Type)	BSD138S (Silent Type)
Length (L) mm	2200	2650
Width (W) mm	800	1040
Height (H) mm	1580	1400
Tank Capacity (L)	230	230

Specifications and illustrations are subject to revision without notice.

Detailed Engine Specifications

Engine Model & Manufacturer	4HTAA4.3-G22 (SDEC)
Engine Type	In-line, 4 strokes, 4 valves, water-cooled, Turbo charged with aftercooler
Combustion Type	Direct injection
Cylinder Type	Dry liner
Number of Cylinders	4
Bore × Stroke	105 × 124 mm
Displacement	4.3 lit.
Compression Ratio	16 : 1
Firing Order	1-3-4-2
Fuel Injection Advance Angle	10°BTDC
Dry Weight	450 kg
Dimension	1080 × 738 × 1078 mm
Rotation	CCW viewed from flywheel
Fly Wheel Housing	SAE 3#
Fly Wheel	SAE 11.5# (number of teeth: 127)

Alternator Specifications

Alternator Brand	BOBIG
Alternator Manufacturer	FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model	BW-274D
Alternator Rated Power	100kw/125kva
Rated Voltage (V)	230v/400v
Rated Frequency	50hz
Connecting Type	3 Phase and 4 W
Number of Bearing	1
Protection Grade	IP23
Altitude	≤1000m
Exciter Type	Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class	H class
Telephone Influence Factor (TIF)	≤50
THF	≤2%
Voltage Regulation, Steady State	≤±1%
Transient State Voltage	≤-15%～+20%
