Hospital Emergency SDEC 6DTAA8.9-G23 Diesel Genset 200kW 220kVA

1
MOQ
USD 300-860
цена
Hospital Emergency SDEC 6DTAA8.9-G23 Diesel Genset 200kW 220kVA
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Выделить:

SDEC diesel generator 200kW

,

hospital emergency diesel genset

,

220kVA SDEC generator with warranty
Основная информация
Место происхождения: Китай
Фирменное наименование: SDEC
Номер модели: 6DTAA8.9-G23
Оплата и доставка Условия
Упаковывая детали: 355*122*195см
Время доставки: 30 рабочих дней
Условия оплаты: L/C, T/T, D/P.
Поставка способности: 500 шт в месяц
Характер продукции
Hospital Emergency SDEC 6DTAA8.9-G23 Diesel Genset 200kW 220kVA

SDEC diesel generator set
Our SDEC 6DTAA8.9-G23 Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned SDEC engine, this 200kw unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.

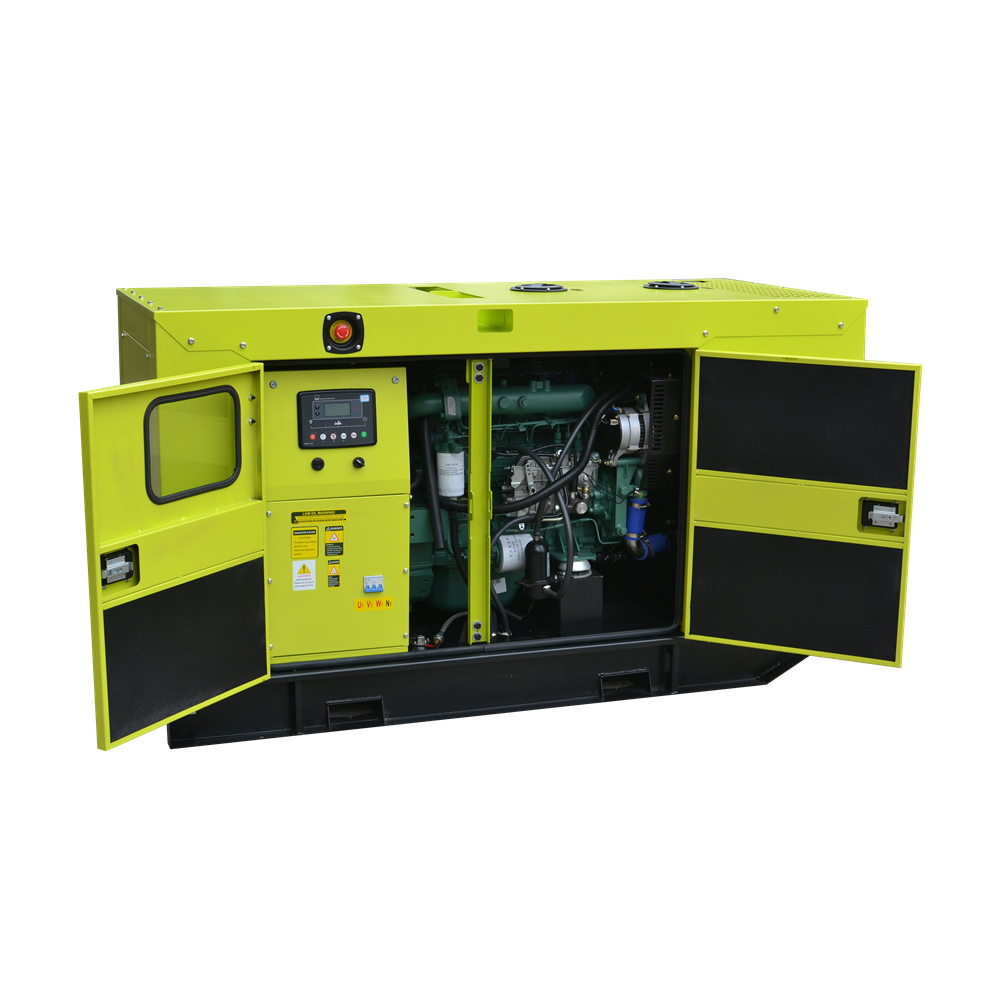

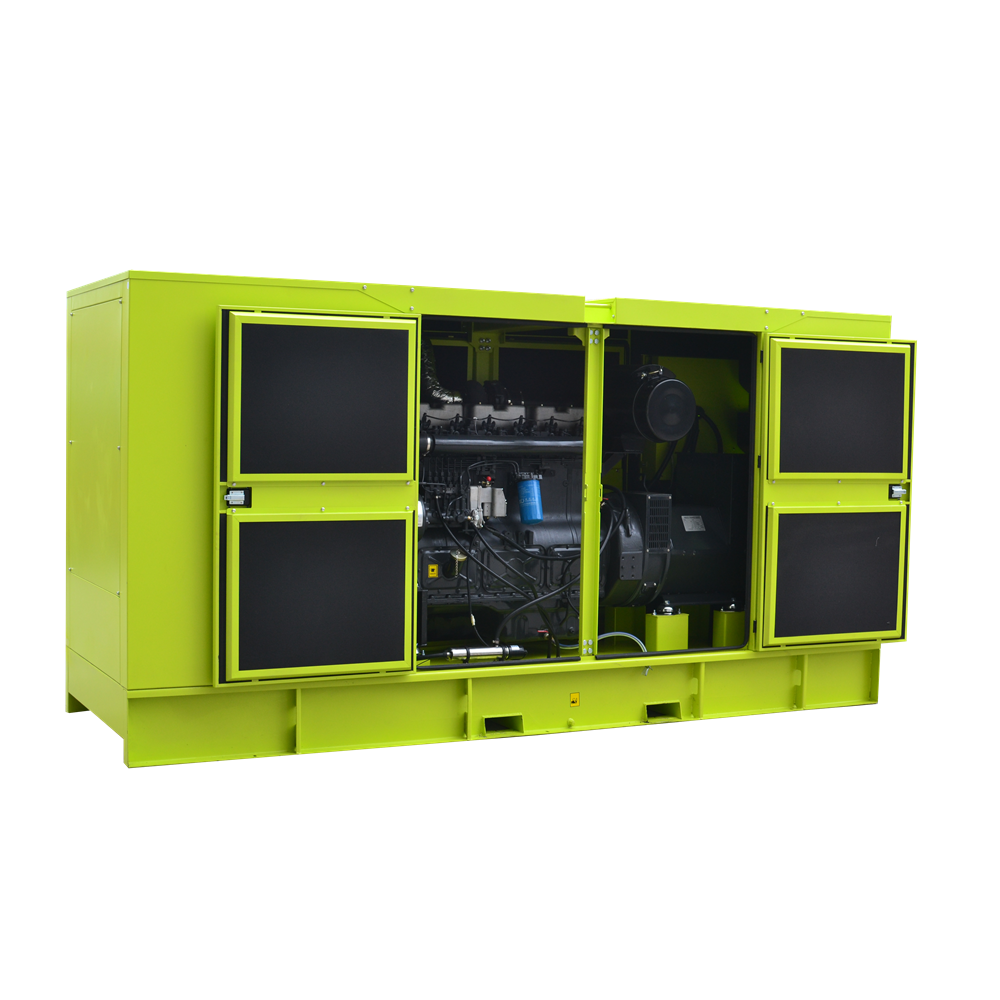

Hospital Emergency SDEC 6DTAA8.9-G23 Diesel Genset 200kW 220kVA 0Hospital Emergency SDEC 6DTAA8.9-G23 Diesel Genset 200kW 220kVA 1
General Specifications
SpecificationPrime PowerStandby Power
Rated Power (kVA)250275
Power Rating (kW)200220
Frequency (Hz)50
Engine Model6DTAA8.9-G23
Engine Speed (RPM)1500
Phase3
PF0.8
Control SystemDigital
Rated voltage (V)400/230 (According to customer requirements)
Fuel tank capacity operating time≥ 8h @ 75% load

PRP: Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP: The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Dimensions and Weight
ModelBSD275BSD275S (Silent type)
Length (mm)26003550
Width (mm)10001220
Height (mm)18501950
Tank capacity (L)460460
Engine Specifications
SpecificationDetails
Engine model & manufacturer6DTAA8.9-G23 (SDEC)
Engine TypeIn-line, 4 strokes, water-cooled; 4 valves, Turbo charged with aftercooler
Combustion typeDirect injection
Cylinder Typewet cylinder liner
Number of cylinders6
Bore × stroke114 × 144 mm
Displacement8.82 lit.
Compression ratio16.5 : 1
Firing order1-5-3-6-2-4
Fuel injection advance angle8.5°BTDC
Dry weight900 kg
Dimension1493×792×1309mm
RotationCCW viewed from flywheel
Fly wheel housingSAE 2#
Fly wheelSAE 11.5#(number of teeth: 125)
Injection pumpLongkou in-line "P" type
GovernorElectric type
Feed pumpMechanical type
Injection nozzleMulti hole type
Alternator Specifications
SpecificationDetails
Alternator BrandBOBIG
Alternator ManufacturerFUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator ModelBW-274K
Alternator Rated Power200kw/250kva
Rated voltage (V)230v/400v
Rated frequency50hz
Connecting Type3 Phase and 4 W
Number of Bearing1
Protection GradeIP23
Altitude≤1000m
Exciter TypeBrushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation ClassH class
Telephone Influence Factor (TIF)≤50
THF≤2%
Voltage Regulation, Steady State≤±1%
Transient State Voltage≤-15%~+20%
Control Panel (DSE 6120)

Key benefits:

  • Automatically transfers between mains (utility) and generator (DSE6120 MKIII only) for convenience
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters are monitored & displayed simultaneously for full visibility
  • The module can be configured to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet user specific application requirements

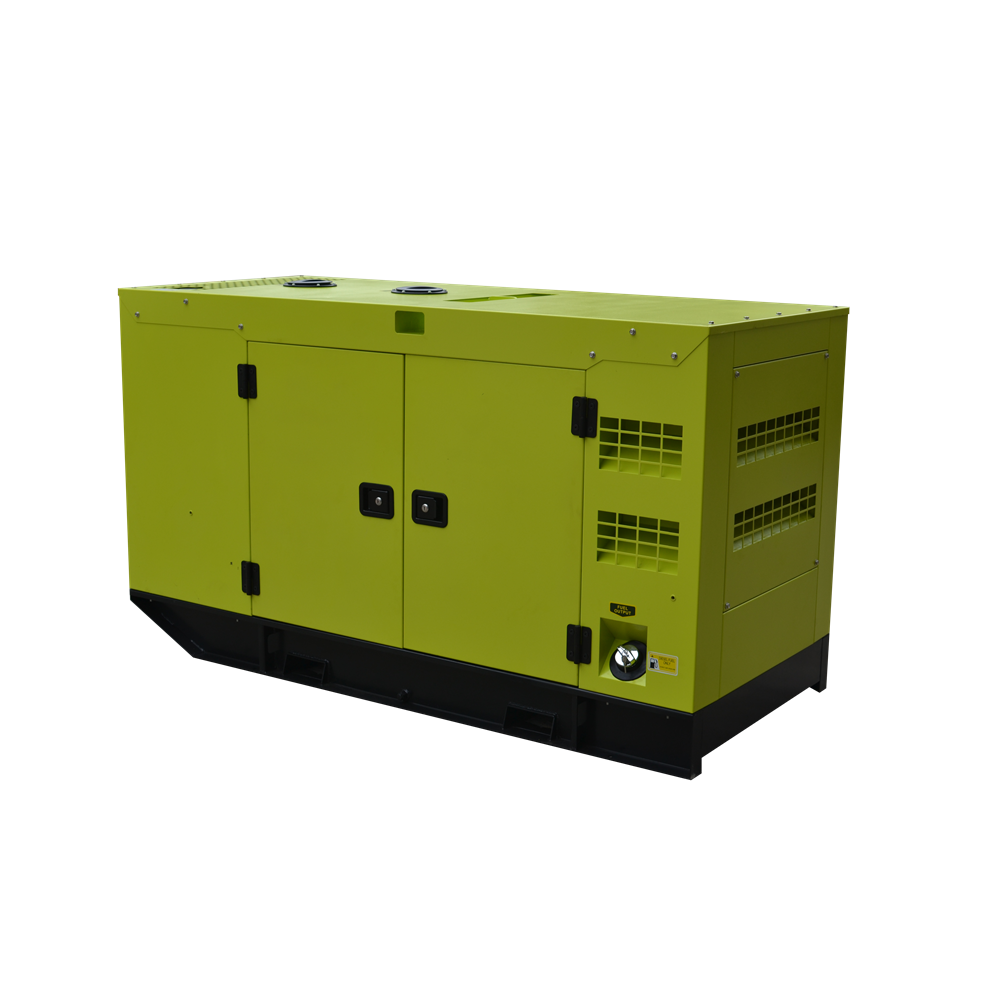

Hospital Emergency SDEC 6DTAA8.9-G23 Diesel Genset 200kW 220kVA 2

Key features:

  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customisable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection (DSE6120 MKIII only)
  • Automatic load transfer control (DSE6120 MKIII only)
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring (kW, kvar, kVA, pf) (DSE6120 MKIII only)
  • kW overload alarm
  • Over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs
  • 4 configurable analogue/digital inputs
  • Support for 0 V to 10 V & 4 mA to 20 mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing in one variant
  • Real time clock
  • Manual and automatic fuel pump control
  • Engine pre-heat and post-heat functions
  • Engine run-time scheduler
  • Engine idle control for starting & stopping
  • Fuel level alarms
  • 3 configurable maintenance alarms
  • Compatible with a wide range of CAN engines, including Tier 4 engine support
  • Uses DSE Configuration Suite PC Software for simplified configuration
  • Licence-free PC software
  • IP65 rating (with optional gasket) offers increased resistance to water ingress
  • Configurable CAN read & transmitted information
  • 1 alternative configuration
Options
EngineAlternatorFuel SystemGenerating Set
Water Jacket Preheater
Oil Preheater
Oil manual pump		PMG excitation
Space heater
Winding temperature measuring		12 / 24 hour base tank
Bunded fuel tank
External fuel tank
Automatic fuel feeding
Switch between external tank and base tank (three-way valve)		Deepsea, ComAp, Smartgen etc. controller
Trailer
Tools with the machine

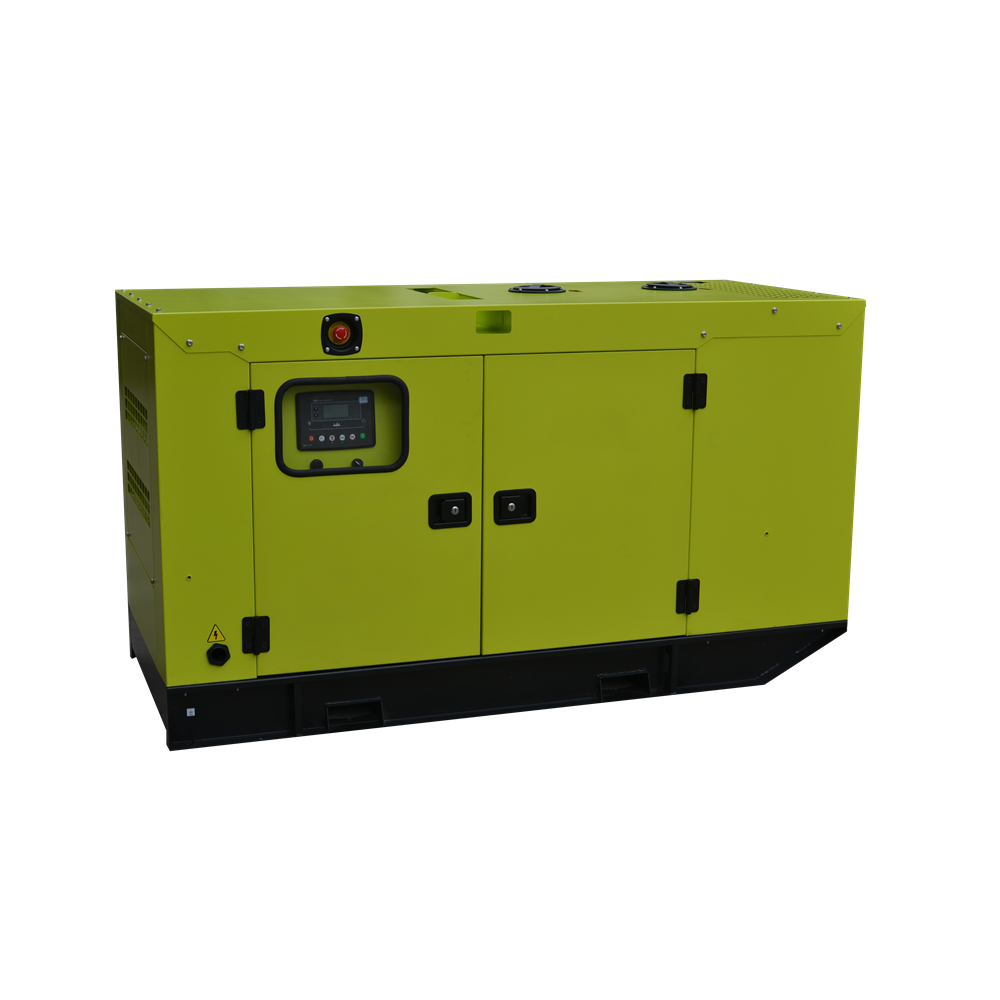

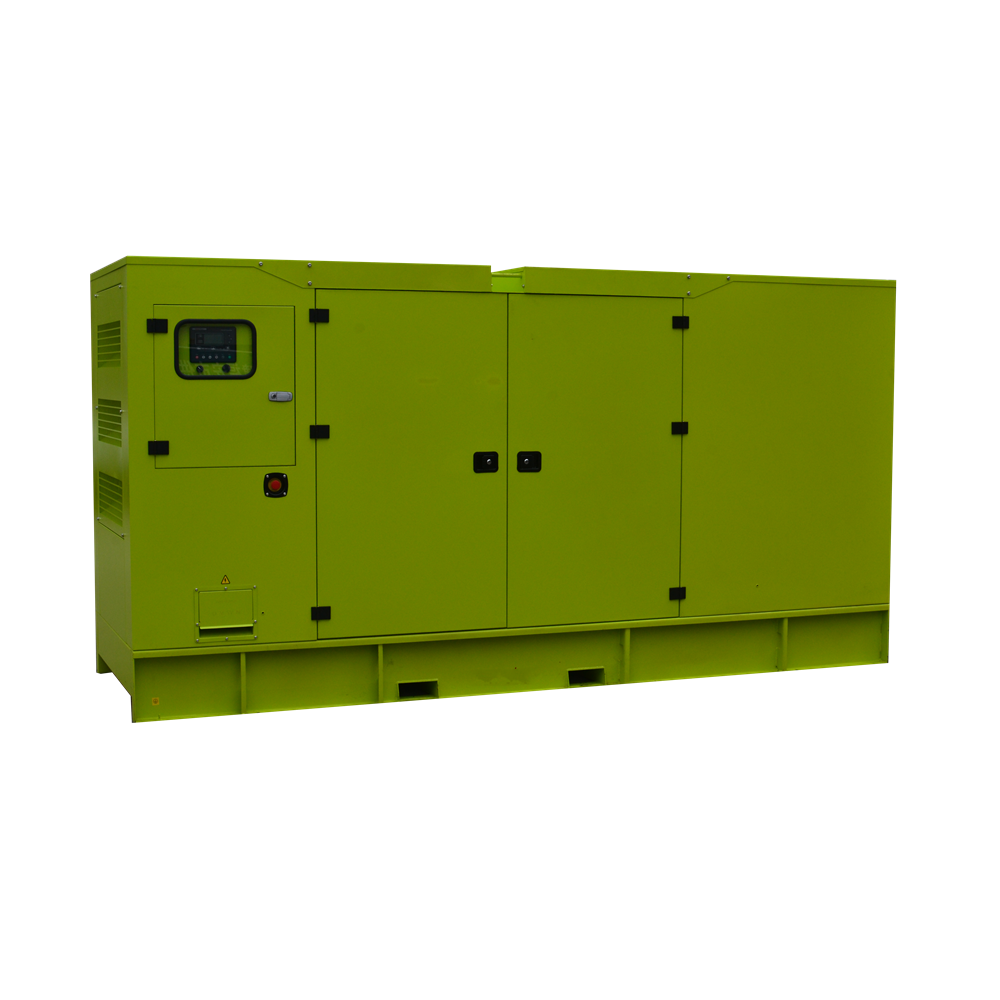

Hospital Emergency SDEC 6DTAA8.9-G23 Diesel Genset 200kW 220kVA 3Hospital Emergency SDEC 6DTAA8.9-G23 Diesel Genset 200kW 220kVA 4
