Name: 900kW 1125KVA Manufacturer Factory Price Silent Portable Durable Diesel Generators Set Power Capacities Genset Generator Cummi
Brand: FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
SKU: KTA38-G9
Price: 15,800.00 USD
Availability: InStock

Характеристики Галерея Характер продукции Спросите цитату

Характеристики

Сень: Индивидуальные

Гарантия: 12 месяцев/1000 часов

Тип: Бесшумный (сверхтихий) или открытый, бесшумный и т. д., рядный/6-цилиндровый/4-тактный/4-клапанный/1

Панель управления: Цифровой ЖК-дисплей, Deepsea, ComAp, Deepsea/ComAp/Harsen/Smartgen 6110, Smartgen

Тип выхода: Однофазный/трехфазный переменный ток

Контроллер: Deepsea/Smartgen/и т. д.

Приложение: Индурсти Банк и т. д.

Номинальное напряжение: 400/230В, 110-480В, 220В/380В, 110В/240В, 380В

Генератор: Марафон, Стэмфорд, СЛГ/Стэмфорд/Марафон/Меккатл/Лерой-сомер, Стэмфорд Или Ньютек, Энгга

Название продукта: Дизельный генератор, генератор 1125 кВА, питание от дизельного генератора CUMMIN S, резервный дизель

Цвет: Требование клиентов

Частота: 50/60 Гц

Номинальная мощность: 900 кВт

Двигатель: Оригинальный КУММИН С

Метод охлаждения: Система водяного охлаждения

Выделить:

900kW silent diesel generator

1125KVA portable genset

Cummins durable generator set

Основная информация

Место происхождения: Китай

Фирменное наименование: CUMMIN S

Сертификация: CE

Номер модели: KTA38-G9

Оплата и доставка Условия

Упаковывая детали: Пузырчатая обертка

Время доставки: 30 дней

Поставка способности: 500 шт в месяц

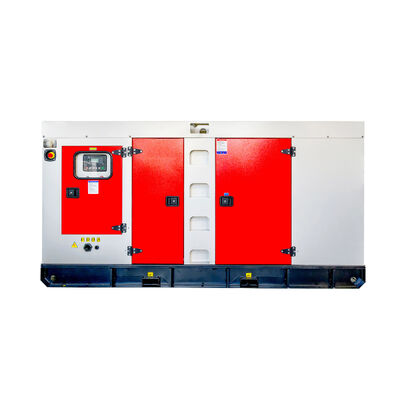

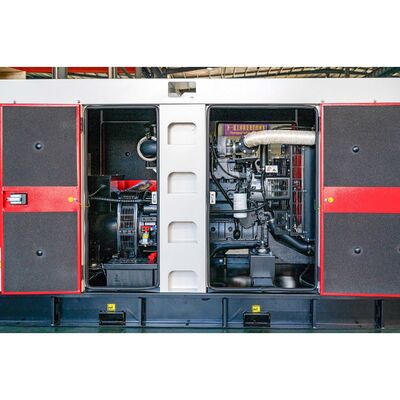

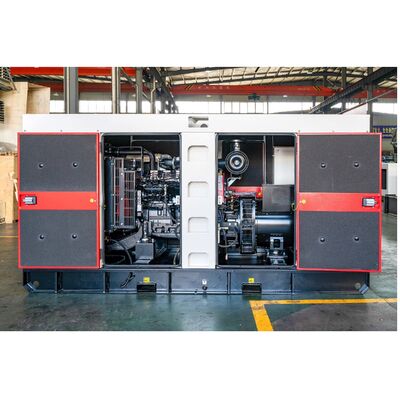

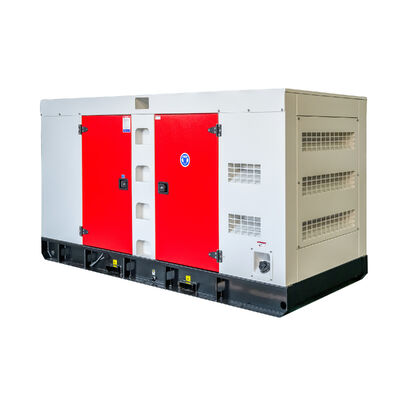

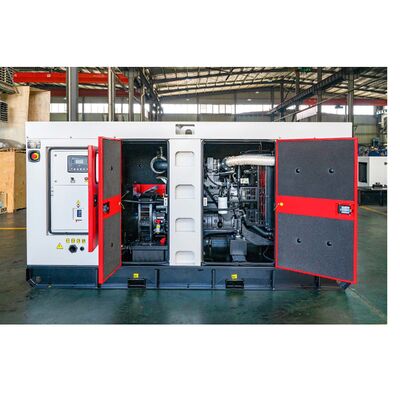

Галерея

900kW 1125KVA Manufacturer Factory Price Silent Portable Durable Diesel Generators Set Power Capacities Genset Generator Cummi

Характер продукции

900kW 1125KVA BOBIG CUMMIN S Diesel Generator (Model: KTA38-G9)

Our 900kW 1125KVA BOBIG CUMMIN S diesel generator (Model: KTA38-G9) is designed to provide reliable power for a wide range of applications. Backed by the renowned CUMMIN S brand, it offers high-quality performance and long-term durability.

Key Features

Power Performance

Rated Power: 900kW (1125KVA) for various industrial, commercial, and residential applications
Stable and efficient prime power output ensuring continuous operation under heavy loads
Standard frequency: 50Hz suitable for most electrical equipment

Engine Excellence

Engine Model: KTA38-G9 CUMMIN S engine with advanced technology
High torque, fuel efficiency, and low emissions
Engine Speed: 1500 RPM for smooth and consistent power supply

Technical Specifications

General Information	Prime Power	Standby Power
Rated Power (kVA)	1125	1238
Power Rating (kW)	900	990
Frequency (Hz)	50
Engine Model	KTA38-G9
Engine Speed (RPM)	1500
Phase	3
PF	0.8
Control System	Digital
Rated Voltage (V)	400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time	≥ 8h @ 75% load

PRP: Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.

ESP: The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Dimensions and Weight

Model	BC1238 (Open Type)	BC1238S (Silent Type)
Length (L) mm	4950	6100
Width (W) mm	2000	2520
Height (H) mm	2500	3050
Tank Capacity (L)	2070	2070

Engine Specifications

Engine Model & Manufacturer	KTA38-G9 (Cummin s)
Number of Cylinders	12
Cylinder Arrangement	In-line
Cycle	Four stroke
Aspiration	Turbocharged, Aftercooled
Bore x Stroke	159 x 159 mm
Displacement	38 L
Compression Ratio	14.5:1
Prime Power/Speed	990 kW/1500 rpm
Standby Power/Speed	1100 kW/1500 rpm
Fuel System	Cummin s PT
Cooling System	Force Water Cooling Cycle
Frequency Droop	≤ 5%
Total Lubrication System Capacity	40.0 L
Coolant Capacity (engine only)	32.7 L
Fuel Consumption (100% load)	193 g/kWh @1500 rpm
Starter Motor	DC 24V
Charge Alternator	DC 24V

Alternator Specifications

Alternator Brand	BOBIG
Alternator Manufacturer	FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model	BW-404F
Alternator Rated Power	900kw/1125kva
Rated Voltage (V)	230v/400v
Rated Frequency	50hz
Connecting Type	3 Phase and 4 W
Number of Bearing	1
Protection Grade	IP23
Altitude	≤1000m
Exciter Type	Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class	H class
Telephone Influence Factor (TIF)	≤50
THF	≤2%
Voltage Regulation, Steady State	≤±1%
Transient State Voltage	≤-15%~+20%

Environmental Adaptability

Ambient Temperature: +5°C to +40°C operating range
Altitude: Suitable for use at altitudes up to 1000m
Customized solutions available for different environmental conditions

Applications

Industrial Use: Backup power source for factories ensuring continuous production during power outages
Commercial Buildings: Office buildings, shopping malls, and hotels for essential services like lighting, elevators, and security systems
Residential Areas: Reliable power for communities in areas with unstable power grids

Customization and OEM Services

We support customization and OEM services with design drawings. All units are equipped with original power supplies and come with the standard DSE 6120 controller. Engine, generator, and controller options are available.

Product Image

Certifications

Warranty and Service

BOBIG products have a guarantee for one year or 1000 hours (whichever comes first) from ex-factory date. During the guarantee period, we provide free easy-damageable spare parts caused by production or raw material quality issues. Professional after-sales service team available 24/7 for technical support, maintenance, and repair services.
