Super Silent Diesel Generator Set Powerd by 200kW 250KVA Water Cooled 3 Phase Power Genset for Sale Chinese Factory Price

Super Silent Diesel Generator Set  Powerd by 200kW  250KVA  Water Cooled 3 Phase Power Genset for Sale Chinese Factory Price
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Сень: Индивидуальные
Гарантия: 12 месяцев/1000 часов
тип: Бесшумный (сверхтихий) или открытый, бесшумный и т. д., рядный/6-цилиндровый/4-тактный/4-клапанный/1
Панель управления: Цифровой ЖК-дисплей, Deepsea, ComAp, Deepsea/ComAp/Harsen/Smartgen 6110, Smartgen
Тип выхода: Однофазный/трехфазный переменный ток
Контроллер: Deepsea/Smartgen/и т. д.
Приложение: Индурсти Банк и т. д.
Номинальное напряжение: 400/230В, 110-480В, 220В/380В, 110В/240В, 380В
Генератор: Марафон, Стэмфорд, СЛГ/Стэмфорд/Марафон/Меккатл/Лерой-сомер, Стэмфорд Или Ньютек, Энгга
Название продукта: Дизельный генератор, генератор 200 кВт, питание от дизельного генератора CUMMIN S, резервный дизельн
Цвет: Требование клиентов
Частота: 50/60 Гц
Номинальная мощность: 200КВт
Двигатель: Оригинальный КУММИН С
Метод охлаждения: Система водяного охлаждения
Выделить:

200kW silent diesel generator

,

250KVA water cooled genset

,

3 phase Cummins diesel generator

Основная информация
Место происхождения: Китай
Фирменное наименование: CUMMIN S
Сертификация: CE
Номер модели: 6LTAA8.9-G2
Оплата и доставка Условия
Упаковывая детали: Пузырчатая обертка
Время доставки: 30 дней
Поставка способности: 500 шт в месяц
Характер продукции
200kW 250KVA BOBIG CUMMIN S Diesel Generator Set
Model: 6LTAA8.9-G2 - Reliable Power Solution
Product Overview
Our 200kW 250KVA BOBIG CUMMIN S diesel generator (Model: 6LTAA8.9-G2) provides reliable power for industrial, commercial, and residential applications. Backed by the renowned CUMMIN S brand, it delivers high-quality performance and long-term durability.
Key Features
Power Performance
  • Rated Power: 200kW (250KVA) for various industrial, commercial, and residential applications
  • Stable prime power output ensures continuous operation under heavy loads
  • Standard frequency: 50Hz suitable for most electrical equipment
Engine Excellence
  • Engine Model: 6LTAA8.9-G2 CUMMIN S engine with advanced technology
  • High torque, fuel efficiency, and low emissions
  • Engine Speed: 1500 RPM for smooth, consistent power supply
Certifications & Standards
Complies with ISO 8528-5:2018, GB/T2820.5-2009, and CE certifications for quality, safety, and reliability.
Environmental Specifications
  • Ambient Temperature: +5°C to +40°C
  • Altitude: Up to 1000m (custom solutions available for different conditions)
Technical Specifications
General Information
Parameter Prime Power Standby Power
Rated Power (kVA) 250 275
Power Rating (kW) 200 220
Frequency (Hz) 50
Engine Model 6LTAA8.9-G2
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity ≥ 8h @ 75% load
Dimensions and Weight
Model Type BC275 (Open) BC275S (Silent)
Length (mm) 2570 3500
Width (mm) 950 1220
Height (mm) 1850 1950
Tank Capacity (L) 460 460
Engine Specifications
Engine Model & Manufacturer 6LTAA8.9-G2 (Cummins)
Number of Cylinders 6
Cylinder Arrangement In-line
Cycle Four Stroke
Aspiration Turbocharged and Charge Air Cooled
Bore x Stroke 114 x 135 mm
Displacement 8.9 L
Compression Ratio 16.6:1
Fuel System BYC P7100 Pump / Electronic Governor
Cooling System Force Water Cooling Cycle
Total Lubrication System Capacity 27.6 L
Coolant Capacity (Engine Only) 11.1 L
Alternator Specifications
Alternator Brand BOBIG
Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-274K
Rated Power 200kW/250kVA
Rated Voltage 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 W
Protection Grade IP23
Insulation Class H Class
Voltage Regulation, Steady State ≤±1%
Customization & OEM Services
We support customization and OEM services with design drawings. All units include standard DSE 6120 controller (engine, generator, and controller options available).
Applications
  • Industrial Use: Backup power for factories ensuring continuous production
  • Commercial Buildings: Office buildings, shopping malls, and hotels for essential services
  • Residential Areas: Reliable power for communities with unstable power grids
Warranty & Service
BOBIG products include a one-year or 1000-hour warranty (whichever comes first). Free replacement of easy-damageable spare parts during warranty period. Professional after-sales service team available 24/7 for technical support and maintenance.
Why Choose BOBIG
  • Brand reputation with trusted Cummins engine technology
  • Quality assurance with rigorous inspections and international standards
  • Customization options tailored to specific requirements
  • Comprehensive warranty and after-sales support

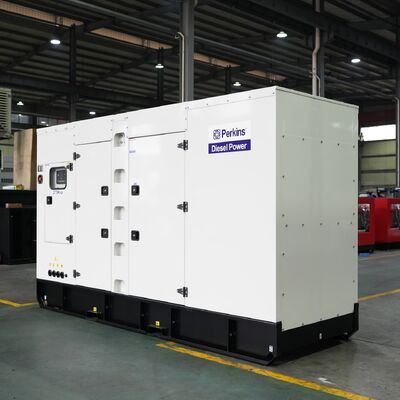

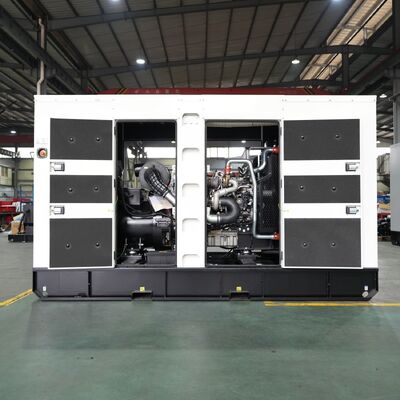

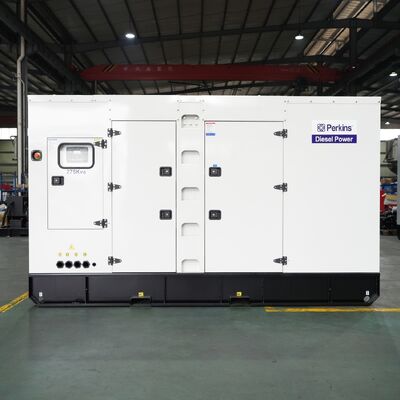

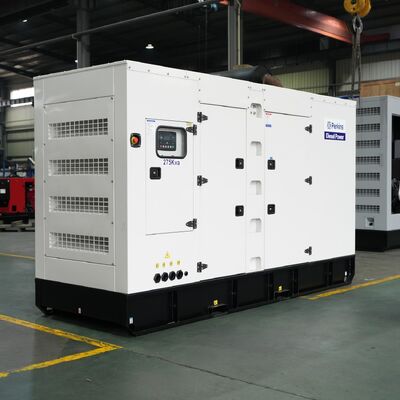

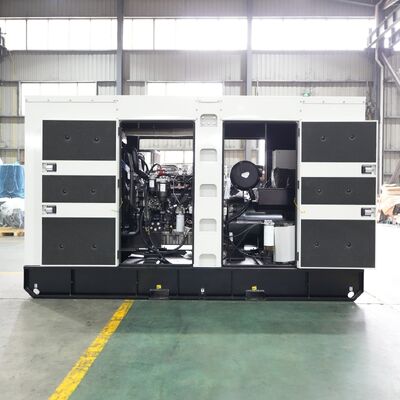

Product Images
Super Silent Diesel Generator Set  Powerd by 200kW  250KVA  Water Cooled 3 Phase Power Genset for Sale Chinese Factory Price 0 Super Silent Diesel Generator Set  Powerd by 200kW  250KVA  Water Cooled 3 Phase Power Genset for Sale Chinese Factory Price 1 Super Silent Diesel Generator Set  Powerd by 200kW  250KVA  Water Cooled 3 Phase Power Genset for Sale Chinese Factory Price 2
Frequently Asked Questions
What is your MOQ, payment method, and delivery time?
MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery. Delivery: 10-15 working days after deposit receipt.
Which port do you use for export?
Fuzhou port, Fujian province or as customer requested.
Do you provide spare parts for maintenance?
Yes, we provide regular engine filters (air, water, fuel, oil) for customer self-maintenance.
Can you customize voltage, frequency, and other specifications?
Yes, all specifications can be customized according to your requirements.
