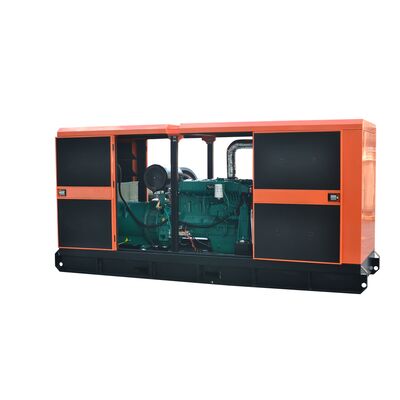

Silent Diesel Generators 200KW 220KW 240KW 250KW 3phase Prime Standby Power 300KVA Powerful Gensets With Brand Engine for Sale

1
MOQ
USD 16000-20000
цена
Silent Diesel Generators 200KW 220KW 240KW 250KW 3phase Prime Standby Power 300KVA Powerful Gensets With Brand Engine for Sale
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Выделить:

silent diesel generator 200KW prime power

,

3phase diesel genset 250KW standby

,

powerful diesel generator 300KVA with warranty
Основная информация
Место происхождения: Китай
Фирменное наименование: DOOSAN
Номер модели: P126TI-II
Оплата и доставка Условия
Упаковывая детали: 390*140*195см
Время доставки: 30 РАБОЧИХ ДНЕЙ
Условия оплаты: Л/К, Т/Т, Д/П
Поставка способности: 500 шт в месяц
Характер продукции
Silent Diesel Generators 200KW-250KW 3-Phase Power Systems
Our DOOSAN P126TI-II Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned DOOSAN engine, this 250kW unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability.
Silent Diesel Generators 200KW 220KW 240KW 250KW 3phase Prime Standby Power 300KVA Powerful Gensets With Brand Engine for Sale 0 Silent Diesel Generators 200KW 220KW 240KW 250KW 3phase Prime Standby Power 300KVA Powerful Gensets With Brand Engine for Sale 1
Power Specifications
Parameter Prime Power Standby Power
Rated Power (kVA) 313 344
Power Rating (kW) 250 275
Frequency (Hz) 50
Engine Model P126TI-II
Engine Speed (RPM) 1500
Phase 3
Power Factor (PF) 0.8
Control System Digital
Rated Voltage (V) 400/230
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Power Rating Definitions
PRP (Prime Power): Available for unlimited annual hours in variable load applications according to GB/T2820-97 standards. Includes 10% overload capability for 1 hour within 12-hour operation periods.
ESP (Standby Power): Applicable for supplying emergency power during utility power interruptions. No overload, utility parallel, or negotiated outage operation capability available at this rating.
Dimensions and Weight
Model BDO344 (Open Type) BDO344S (Silent Type)
Length (L) mm 3100 3900
Width (W) mm 1050 1400
Height (H) mm 2100 1950
Tank Capacity (L) 575 575
Engine Specifications
Engine Model & Manufacturer P126TI-II (DOOSAN)
Engine Type Diesel, water cooled, Turbo charged & intercooled
Bore x Stroke 123 × 155mm
Displacement 11 liters
Cylinders and Arrangement Cast iron, 6 cylinder, In-line Type
Battery Charging Alternator 28.5V × 45A alternator
Starting Voltage 24V
Fuel System Mechanical Injection Pump
Fuel Filter Full flow, cartridge type with water drain valve
Lube Oil Filter Type Full flow, cartridge type
Lube Oil Capacity Max. 23 liters, Min. 20 liters
Flywheel Dimensions Clutch No. 14 M
Dry Weight 950kg (engine only)
Dimension (L×W×H) 1389 × 1389 × 1216 mm
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-314DS
Alternator Rated Power 250kW/313kVA
Rated Voltage (V) 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 Wire
Number of Bearings 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Control Panel - DSE 6120
Auto start and auto mains failure control module with alternator frequency & CAN speed sensing for automatic transfer between mains (utility) and generator power sources.
Silent Diesel Generators 200KW 220KW 240KW 250KW 3phase Prime Standby Power 300KVA Powerful Gensets With Brand Engine for Sale 2
Key Benefits
  • Automatic transfer between mains and generator power
  • Hours counter for accurate maintenance monitoring
  • User-friendly setup and button layout
  • Multiple parameter monitoring and simultaneous display
  • Configurable for wide range of applications
  • PLC editor for user-configurable functions
Key Features
  • 4-line back-lit LCD text display with multiple languages
  • Five-key menu navigation with LCD alarm indication
  • Customizable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility and internal PLC editor
  • 3-phase generator and mains sensing and protection
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • kW overload alarm and over current protection
  • Breaker control via fascia buttons
  • 6 configurable DC outputs and 4 configurable analogue/digital inputs
  • Support for 0V to 10V & 4mA to 20mA sensors
  • 8 configurable digital inputs
  • Real time clock and engine run-time scheduler
  • IP65 rating with optional gasket for water resistance
Available Options
Engine Alternator Fuel System Generating Set
Water Jacket Preheater PMG excitation 12/24 hour base tank Deepsea, ComAp, Smartgen controllers
Oil Preheater Space heater Bunded fuel tank Trailer
Oil manual pump Winding temperature measuring External fuel tank Tools with the machine
Automatic fuel feeding
Switch between external tank and base tank
Product Gallery
Silent Diesel Generators 200KW 220KW 240KW 250KW 3phase Prime Standby Power 300KVA Powerful Gensets With Brand Engine for Sale 3 Silent Diesel Generators 200KW 220KW 240KW 250KW 3phase Prime Standby Power 300KVA Powerful Gensets With Brand Engine for Sale 4 Silent Diesel Generators 200KW 220KW 240KW 250KW 3phase Prime Standby Power 300KVA Powerful Gensets With Brand Engine for Sale 5 Silent Diesel Generators 200KW 220KW 240KW 250KW 3phase Prime Standby Power 300KVA Powerful Gensets With Brand Engine for Sale 6
