Factory Price Open/Silent Type Yangmar Diesel Generator 10KW/13KVA Power Supply Water Cooling

1 КОМПЛЕКТ
MOQ
2313-2683USD
цена
Factory Price Open/Silent Type Yangmar Diesel Generator 10KW/13KVA Power Supply Water Cooling
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Скорость: 1500 об/мин
Частота: 50/60 Гц
Номинальная мощность: от 5кВт до 2000кВт
Тип выхода: Трехфазный переменный ток
Тип: Открытый или бесшумный (супер бесшумный)
Цвет: По вашему требованию, по индивидуальному заказу
Выделить:

10KW silent diesel generator

,

Yangmar water cooling generator

,

13KVA open type generator
Основная информация
Место происхождения: Китай
Фирменное наименование: YANGMAR
Номер модели: 3TNV88-GGE
Оплата и доставка Условия
Упаковывая детали: фанера
Время доставки: 40рабочих дней
Условия оплаты: Л/К, Т/Т
Поставка способности: 50 комплектов в месяц
Характер продукции
Factory Price Open/Silent Type Yangmar Diesel Generator 10KW/13KVA Power Supply Water Cooling
High Quality Open/Silent Type YANGMAR Diesel Generator 100KW/125KVA. High quality water cooling QUANCHAI diesel generator available in both open and silent configurations to meet diverse operational requirements. This reliable power supply unit delivers consistent performance for various applications.
Key Features
  • Equipped with famous brushless alternator brands: Leroy Somer, Marathon, BOBIG, Mecc Alte
  • 50°C radiator with fan for optimal engine cooling during extended operation
  • Advanced control systems including generator set control, ATS system, remote control, and parallel operation
  • High-quality steel canopy construction (2MM to 6MM thickness)
  • High-density sound-absorbing material for effective sound insulation and fireproofing
  • 12V/24V DC battery with charger and connecting wires
  • 10-12 hours fuel tank with fuel indicator for continuous operation
  • High protection class control box (IP55) with waterproofing, electric leakage protection, and breaker
  • Turn-back type air inflow & outlet design reduces noise and improves engine efficiency
  • Practical design with bottom holes for forklift, water outlet, and oil outlet for easy maintenance
  • Double open doors on both sides for comprehensive engine and alternator access
  • Available in silent, super silent, soundproof, trailer type, and container type configurations
  • Compliance with major standards: GB/T2820, ISO8528, IEC34, CE, EPA Tier4
Technical Specifications
General Information
General Information Prime Power Standby Power
Rated Power (kVA) 13 14
Power Rating (kW) 10 11
Frequency (Hz) 50
Engine Model 3TNV88-GGE
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP (Prime Power): Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP (Standby Power): Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Dimensions and Weight
Dimension and Weight Open Type BYN14 Silent Type BYN14S
Length (L) mm 1400 1750
Width (W) mm 610 850
Height (H) mm 1130 1030
Tank Capacity (L) 23 23
Engine Specifications
Engine Model & Manufacturer 3TNV88-GGE (YANMAR)
Engine Type 4 cycle, Inline, Water-cooled Diesel
No. of Cylinders - Bore × Stroke (mm) 3-φ88×90
Combustion System Direct Injection
Compression Ratio 19.1
Displacement (liter) 1.642
Rated Output kW(PS)/min-1 13.2(17.9)/16.2(22) at 1500/1800
Continuous Rating kW(PS)/min-1 12.2(16.6)/14.7(20) at 1500/1800
Specific Fuel Consumption g/kW-h(g/PS-h) 245(180) (at rated output)
Ambient Condition 25℃, 750mmHg, 30%
Engine Dry Weight (kg) approx. 155
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-164C
Alternator Rated Power 10kw/13kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%～+20%
Standard Components
  • Heavy duty diesel engine
  • Starter battery (with lead acid) including rack and cables
  • Anti-vibration mount
  • Flexible fuel connection hoses
  • Replaceable fuel filter, oil filter & air filter
  • Exhaust silencer and bellows
  • Cooling radiator and fan
  • Operation manuals and circuit diagram documents
Product Images

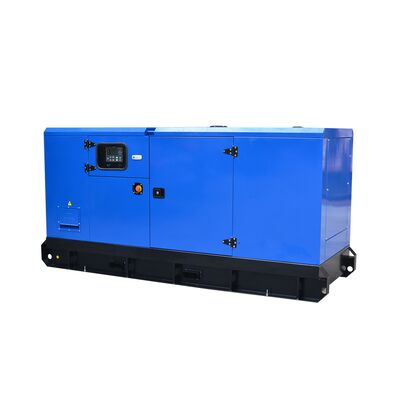

Factory Price Open/Silent Type Yangmar Diesel Generator 10KW/13KVA Power Supply Water Cooling 0
Front View

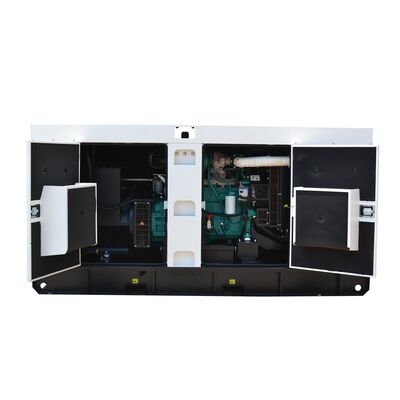

Factory Price Open/Silent Type Yangmar Diesel Generator 10KW/13KVA Power Supply Water Cooling 1
Side View

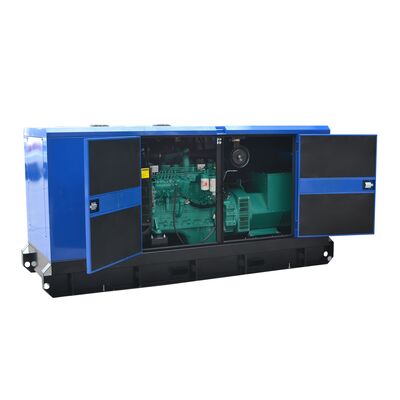

Factory Price Open/Silent Type Yangmar Diesel Generator 10KW/13KVA Power Supply Water Cooling 2
Control Panel

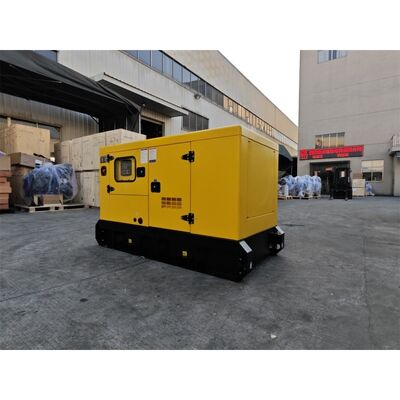

Factory Price Open/Silent Type Yangmar Diesel Generator 10KW/13KVA Power Supply Water Cooling 3
Engine Detail

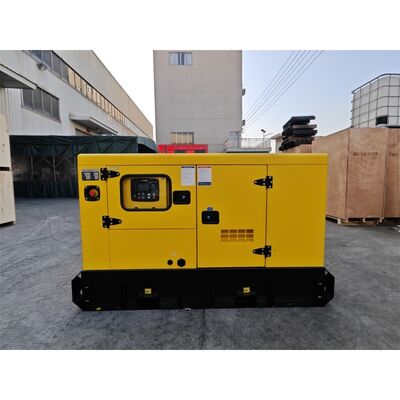

Factory Price Open/Silent Type Yangmar Diesel Generator 10KW/13KVA Power Supply Water Cooling 4
Alternator View
Factory Price Open/Silent Type Yangmar Diesel Generator 10KW/13KVA Power Supply Water Cooling 5
Silent Type Exterior
Factory Price Open/Silent Type Yangmar Diesel Generator 10KW/13KVA Power Supply Water Cooling 6
Internal Components
Factory Price Open/Silent Type Yangmar Diesel Generator 10KW/13KVA Power Supply Water Cooling 7
Cooling System
Factory Price Open/Silent Type Yangmar Diesel Generator 10KW/13KVA Power Supply Water Cooling 8
Fuel System
Factory Price Open/Silent Type Yangmar Diesel Generator 10KW/13KVA Power Supply Water Cooling 9
Electrical Connections
Factory Price Open/Silent Type Yangmar Diesel Generator 10KW/13KVA Power Supply Water Cooling 10
Full Assembly
Factory Price Open/Silent Type Yangmar Diesel Generator 10KW/13KVA Power Supply Water Cooling 11
Quality Inspection
Specifications and illustrations are subject to revision without notice.
