High Quality Open/Silent Type Quanchai Diesel Generator 88KW/110KVA Power Supply Water Cooling

1 КОМПЛЕКТ
MOQ
8899-9937USD
цена
High Quality Open/Silent Type Quanchai Diesel Generator 88KW/110KVA Power Supply Water Cooling
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Скорость: 1500 об/мин
Частота: 50/60 Гц
Номинальная мощность: от 5кВт до 2000кВт
Тип выхода: Трехфазный переменный ток
Тип: Открытый или бесшумный (супер бесшумный)
Цвет: По вашему требованию, по индивидуальному заказу
Выделить:

Quanchai silent diesel generator 88KW

,

water cooling diesel generator 110KVA

,

open type diesel generator with warranty
Основная информация
Место происхождения: Китай
Фирменное наименование: QUANCHAI
Номер модели: QC4112ZLD
Оплата и доставка Условия
Упаковывая детали: фанера
Время доставки: 40рабочих дней
Условия оплаты: Л/К, Т/Т
Поставка способности: 50 комплектов в месяц
Характер продукции
High Quality Open/Silent Type Quanchai Diesel Generator 88KW/110KVA Power Supply Water Cooling
Product Overview

High quality water cooling QUANCHAI diesel generator available in both open and silent configurations to meet diverse operational requirements.

Key Features
  • Equipped with famous brushless alternator brands: Leroy Somer, Marathon, BOBIG, Mecc Alte
  • 50°C radiator with fan for optimal engine cooling during extended operation
  • Advanced control systems including generator set control, ATS system, remote control, and parallel operation
  • High-quality steel canopy construction (2MM to 6MM thickness)
  • High-density sound-absorbing material for effective sound insulation and fireproofing
  • 12V/24V DC battery with charger and connecting wires
  • 10-12 hours fuel tank with fuel indicator for continuous operation
  • High protection class control box (IP55) with waterproofing, electric leakage protection, and breaker
  • Turn-back type air inflow & outlet design reduces noise and improves engine efficiency
  • Practical design with bottom holes for forklift, water outlet, and oil outlet for easy maintenance
  • Double open doors on both sides for comprehensive engine and alternator access
  • Available in silent, super silent, soundproof, trailer type, and container type configurations
  • Compliance with major standards: GB/T2820, ISO8528, IEC34, CE, EPA Tier4
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 110 121
Power Rating (kW) 88 97
Frequency (Hz) 50
Engine Model QC4112ZLD
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP (Prime Power): Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP (Standby Power): Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Dimensions and Weight
Model BQ121 (Open Type) BQ121S (Silent Type)
Length (L) mm 2360 2850
Width (W) mm 700 1040
Height (H) mm 1440 1400
Tank Capacity (L) 202 202
Note: Specifications and illustrations are subject to revision without notice.
Engine Specifications
Engine Model & Manufacturer QC4112ZLD (QUANCHAI)
Model QC4112ZLD
Bore*Stroke (mm) 112×135
Total Displacement (L) 5.32
Rated Power (kw) 85.5 | 94.5
Standby Power (kw) 95 | 105
Rated Speed (r/min) 1500 | 1800
Rated Power For Generator Sets (kva) 85.5 | 94.5
Standby Power For Generator Sets (kva) 95 | 105
Rated Power For Generator Sets (kw) 68.4 | 75.6
Standby Power For Generator Sets (kw) 76 | 84
Steady State Speed Governing Rate % ≤5
Max Speed On No Load (r/min) 1575
Min Speed On No Load (r/min) 850
Specific Fuel Consumption Rate At Max. Speed (g/kW*h) ≤245
Net Weight (kg) 510
Dimension (L*W*H) (mm) 1440×740×1100 (WITHOUT AIR FILTER AND RADIATOR)
Rotation (Viewed From Flywheel) COUNTER CLOCKWISE
Flywheel House Sizing SAE3＃
Flywheel House Sizing SAE11.5″
Number Of Teeth Of The Flywheel 133
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-274D
Alternator Rated Power 88kw/110kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%～+20%
Standard Components
  • Heavy duty diesel engine
  • Starter battery (with lead acid) including rack and cables
  • Anti-vibration mount
  • Flexible fuel connection hoses
  • Replaceable fuel filter, oil filter & air filter
  • Exhaust silencer and bellows
  • Cooling radiator and fan
  • Operation manuals and circuit diagram documents
Product Images

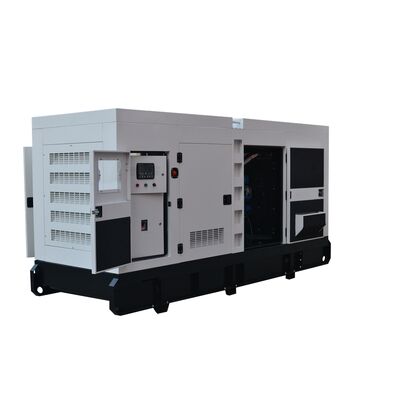

High Quality Open/Silent Type Quanchai Diesel Generator 88KW/110KVA Power Supply Water Cooling 0
Front View

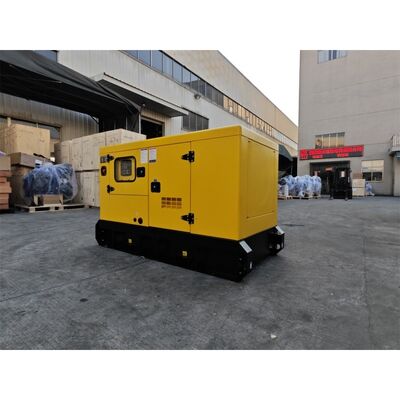

High Quality Open/Silent Type Quanchai Diesel Generator 88KW/110KVA Power Supply Water Cooling 1
Side View

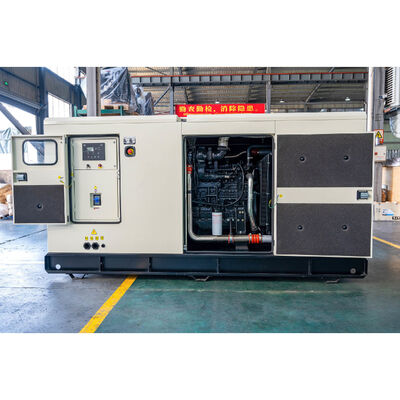

High Quality Open/Silent Type Quanchai Diesel Generator 88KW/110KVA Power Supply Water Cooling 2
Control Panel
High Quality Open/Silent Type Quanchai Diesel Generator 88KW/110KVA Power Supply Water Cooling 3
Engine Detail
High Quality Open/Silent Type Quanchai Diesel Generator 88KW/110KVA Power Supply Water Cooling 4
Alternator View
High Quality Open/Silent Type Quanchai Diesel Generator 88KW/110KVA Power Supply Water Cooling 5
Silent Type Exterior
High Quality Open/Silent Type Quanchai Diesel Generator 88KW/110KVA Power Supply Water Cooling 6
Internal Components
High Quality Open/Silent Type Quanchai Diesel Generator 88KW/110KVA Power Supply Water Cooling 7
Cooling System
High Quality Open/Silent Type Quanchai Diesel Generator 88KW/110KVA Power Supply Water Cooling 8
Fuel System
High Quality Open/Silent Type Quanchai Diesel Generator 88KW/110KVA Power Supply Water Cooling 9
Electrical Connections
High Quality Open/Silent Type Quanchai Diesel Generator 88KW/110KVA Power Supply Water Cooling 10
Full Assembly
High Quality Open/Silent Type Quanchai Diesel Generator 88KW/110KVA Power Supply Water Cooling 11
Quality Inspection
Specifications and illustrations are subject to revision without notice.
