Name: POWER Intelligent diesel Generator 100kva 80kw Open Type Silent diesel Electric Power Make Generator 80kw Silentcanopy Set
Brand: FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
SKU: СА6Ф2Д - 14Д
Price: 1,900.00 USD
Availability: InStock

Характеристики Галерея Характер продукции Спросите цитату

Характеристики

Гарантия: индивидуальный

Тип: Бесшумный (сверхтихий) или открытый, бесшумный и т. д., рядный/6-цилиндровый/4-тактный/4-клапанный/1

Панель управления: Цифровой ЖК-дисплей, Deepsea, ComAp, Deepsea/ComAp/Harsen/Smartgen 6110, Smartgen

Тип выхода: Однофазный/трехфазный переменный ток

Контроллер: Deepsea/Smartgen/и т. д.

Приложение: Индурсти Банк и т. д.

Номинальное напряжение: 400/230В, 110-480В, 220В/380В, 110В/240В, 380В

Генератор: Марафон, Стэмфорд, СЛГ/Стэмфорд/Марафон/Меккатл/Лерой-сомер, Стэмфорд Или Ньютек, Энгга

Название продукта: Дизельный генератор, генератор 100 ква, питание от дизельного генератора FAWDE, резервный дизельный

Цвет: Требование клиентов

Частота: 50/60 Гц

Номинальная мощность: 100кВА

Двигатель: Первоначальное Fawde

метод охлаждения: Система водяного охлаждения

Выделить:

100kva silent diesel generator

80kw open type power generator

intelligent diesel generator with warranty

Основная информация

Место происхождения: Китай

Фирменное наименование: FAWDE

Сертификация: CE

Номер модели: СА6Ф2Д - 14Д

Оплата и доставка Условия

Упаковывая детали: фанера

Время доставки: 30 дней

Поставка способности: 500 шт в месяц

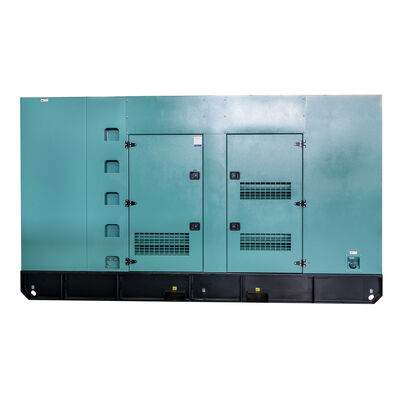

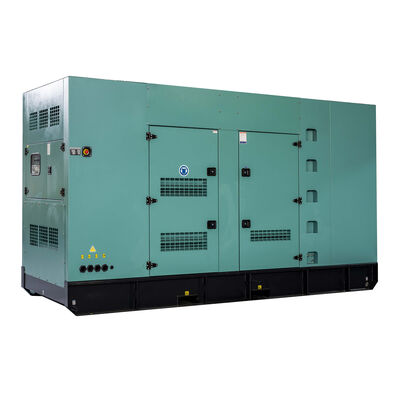

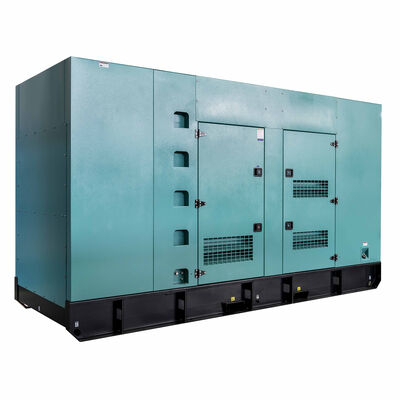

Галерея

POWER Intelligent diesel Generator 100kva 80kw Open Type Silent diesel Electric Power Make Generator 80kw Silentcanopy Set

Характер продукции

80kW 100KVA BOBIG FAWDE Diesel Generator (Model: CA6F2D-14D)

Our 80kW 100KVA BOBIG FAWDE diesel generator (Model: CA6F2D-14D) is designed to provide reliable power for a wide range of applications. Backed by the FAWDE brand, it offers high-quality performance and long-term durability.

Key Features

Power Performance: Rated power of 80kW (100KVA) with stable and efficient prime power output

Engine Excellence: Powered by CA6F2D-14D FAWDE engine with high torque, fuel efficiency, and low emissions

Standard Frequency: Operates at 50Hz, suitable for most electrical equipment

Engine Speed: 1500 RPM for smooth and consistent power supply

Technical Specifications

General Information	Prime Power	Standby Power
Rated Power (kVA)	100	110
Power Rating (kW)	80	88
Frequency (Hz)	50
Engine Model	CA6DF2D-14D-YFD10W
Engine Speed (RPM)	1500
Phase	3
PF	0.8
Control System	Digital
Rated Voltage (V)	400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time	≥ 8h @ 75% load

Engine Specifications	Details
Engine Model & Manufacturer	CA6DF2D-14D-YFD10W (FAWDE)
Engine Model	CA6F2D-14D
No. of Cylinders	6
Cylinder Arrangement	In-line
Cycle	4 stroke
Aspiration	Turbocharged
Cooling System	Water-cooled
Bore	110 mm
Stroke	115 mm
Compression Ratio	17.5:1
Displacement	6.56 L
Dry Engine Weight	700 kg
Dimension (LWH)	1310721995

Alternator Specifications	Details
Alternator Brand	BOBIG
Alternator Manufacturer	FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model	BW-274C
Alternator Rated Power	80kw/100kva
Rated Voltage (V)	230v/400v
Rated Frequency	50hz
Connecting Type	3 Phase and 4 W
Number of Bearing	1
Protection Grade	IP23
Altitude	≤1000m
Exciter Type	Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class	H class

Dimension and Weight	Open Type (BFA110S)	Silent Type
Length (L) mm	2200	3000
Width (W) mm	900	1040
Height (H) mm	1500	1420
Tank Capacity (L)	184	184

Applications

Industrial Use: Backup power source for factories ensuring continuous production during power outages
Commercial Buildings: Office buildings, shopping malls, and hotels to maintain essential services
Residential Areas: Reliable power for communities with unstable power grids

Warranty and Service

BOBIG products have a guarantee for one year or 1000 hours (whichever comes first) from ex-factory date. During the guarantee period, we provide free easy-damageable spare parts caused by production or raw material quality issues.

Quality Standards

Our generator complies with multiple international standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certification, guaranteeing quality, safety, and reliability.

Environmental Adaptability

Ambient Temperature: Operates effectively from +5°C to +40°C
Altitude: Suitable for use up to 1000m (customized solutions available for different conditions)

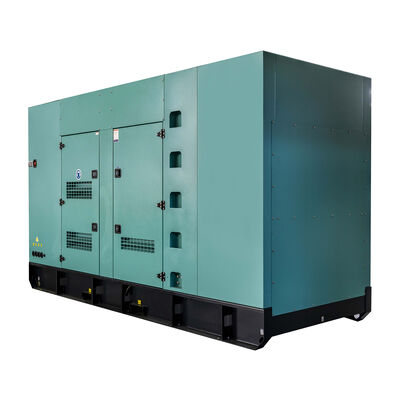

Product Image

Packaging & Shipping

Plywood case, 10-15 working days after receiving customer deposit.

Frequently Asked Questions

What is your MOQ, payment method, delivery time?

MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery. Delivery: 10-15 working days after deposit.

Which port do you use for export?

Fuzhou port, Fujian province or as customer request.

Do you provide spare parts?

Yes, we provide regular engine filters for self-maintenance and can supply parts anytime within 3-5 days.

Can you customize voltage, frequency, and other specifications?

Yes, voltage, frequency, tank capacity, phase, and color can be customized according to your needs.
