Name: YANGDONG Silent Soundproof Diesel Generator Sets 60kw 75kVA Power Plant 50/60Hz for Industry
Brand: FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
SKU: ЯНДУН Y4110ZLDA
Price: 5,000.00 USD
Availability: InStock

Характеристики Галерея Характер продукции Спросите цитату

Характеристики

Выделить:

silent soundproof diesel generator 60kw

75kVA diesel generator for industry

industrial power plant generator 50/60Hz

Основная информация

Место происхождения: Китай

Фирменное наименование: YANGDONG

Номер модели: ЯНДУН Y4110ZLDA

Оплата и доставка Условия

Упаковывая детали: 260*93*122см

Время доставки: 30 РАБОЧИХ ДНЕЙ

Условия оплаты: Л/К, Т/Т, Д/П

Поставка способности: 500 шт в месяц

Галерея

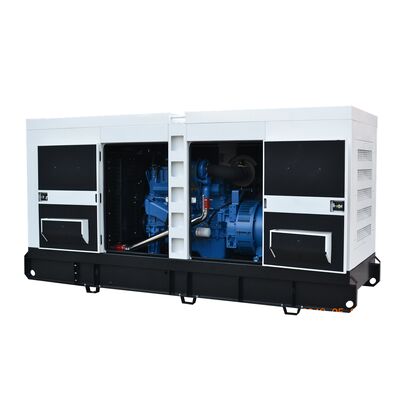

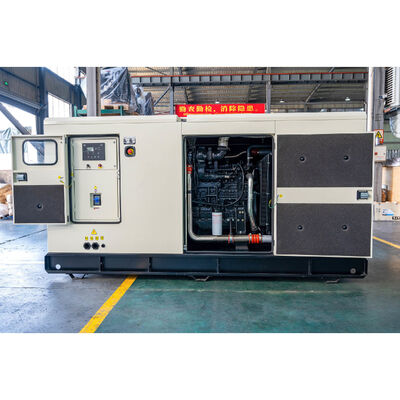

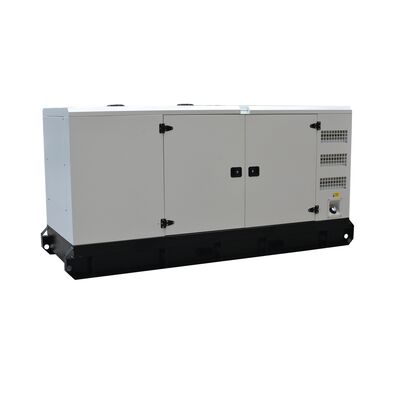

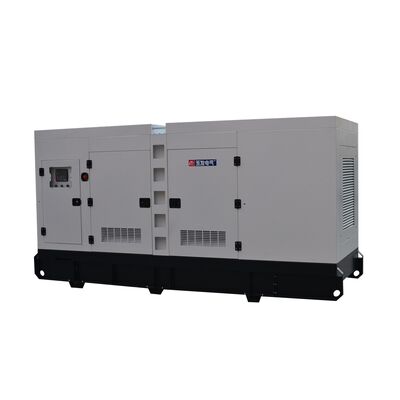

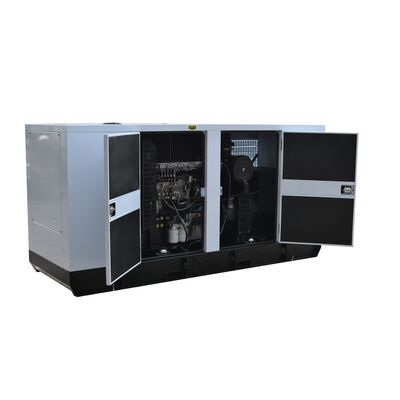

YANGDONG Silent Soundproof Diesel Generator Sets 60kw 75kVA Power Plant 50/60Hz for Industry

Характер продукции

YANGDONG Silent Soundproof Diesel Generator Sets 60kw 75kVA Power Plant 50/60Hz for Industry

Our YANGDONG Y4110ZLDA Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned YANGDONG engine, this 60kW unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.

General Specifications

Specification	Prime Power	Standby Power
Rated Power (kVA)	75	83
Power Rating (kW)	60	66
Frequency (Hz)	50
Engine Model	Y4110ZLDA
Engine Speed (RPM)	1500
Phase	3
Power Factor (PF)	0.8
Control System	Digital
Rated Voltage (V)	400/230
Fuel Tank Capacity Operating Time	≥ 8h @ 75% load

PRP Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.

ESP The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Dimensions and Weight

Model	BY83 (Open Type)	BY83S (Silent Type)
Length (L) mm	1850	2600
Width (W) mm	730	930
Height (H) mm	1350	1220
Tank Capacity (L)	138	138

Engine Specifications

Engine Model & Manufacturer	Y4110ZLDA (YANGDONG)
Number of Cylinders	4
Injection Type	Direct
Aspiration	Turbocharged and Intercooled
Configuration	Vertical
Bore	110 mm
Stroke	118 mm
Compression Ratio	18
Displacement	4.49 L
Dry Engine Weight	420 kg
Dimension (L×W×H)	883×720×808 mm
The Flywheel Shell Interface	SAE3
Governed Engine Speed	1500 RPM
Continuous Power without Fans	72 kW
Standby Power	79 kW
Number of Flywheel Teeth	119

Alternator Specifications

Alternator Brand	BOBIG
Alternator Manufacturer	FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model	BW-224F
Alternator Rated Power	60kW/75kVA
Rated Voltage (V)	230V/400V
Rated Frequency	50Hz
Connecting Type	3 Phase and 4 Wire
Number of Bearing	1
Protection Grade	IP23
Altitude	≤1000m
Exciter Type	Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class	H class
Telephone Influence Factor (TIF)	≤50
THF	≤2%
Voltage Regulation, Steady State	≤±1%
Transient State Voltage	≤-15%~+20%

Control Panel - DSE 6120

Auto start and auto mains failure control module (Alternator frequency & CAN speed sensing)

Key Benefits

Automatically transfers between mains (utility) and generator (DSE6120 MKIII only) for convenience
Hours counter provides accurate information for monitoring and maintenance periods
User-friendly set-up and button layout for ease of use
Multiple parameters are monitored & displayed simultaneously for full visibility
The module can be configured to suit a wide range of applications for user flexibility
PLC editor allows user configurable functions to meet user specific application requirements

Key Features

4-line back-lit LCD text display
Multiple display languages
Five-key menu navigation
LCD alarm indication
Customisable power-up text and screen images
DSENet® expansion compatibility
Data logging facility
Internal PLC editor
Protections disable feature
Fully configurable via PC using USB communications
Front panel configuration with PIN protection
Power save mode
3-phase generator sensing and protection
3-phase mains (utility) sensing and protection (DSE6120 MKIII only)
Automatic load transfer control (DSE6120 MKIII only)
Generator current and power monitoring (kW, kvar, kVA, pf)
Mains (utility) current and power monitoring (kW, kvar, kVA, pf) (DSE6120 MKIII only)
kW overload alarm
Over current protection
Breaker control via fascia buttons
Fuel and start outputs configurable when using CAN
6 configurable DC outputs
4 configurable analogue/digital inputs
Support for 0 V to 10 V & 4 mA to 20 mA sensors
8 configurable digital inputs
CAN, MPU and alternator frequency speed sensing in one variant
Real time clock
Manual and automatic fuel pump control
Engine pre-heat and post-heat functions
Engine run-time scheduler
Engine idle control for starting & stopping
Fuel level alarms
3 configurable maintenance alarms
Compatible with a wide range of CAN engines, including Tier 4 engine support
Uses DSE Configuration Suite PC Software for simplified configuration
Licence-free PC software
IP65 rating (with optional gasket) offers increased resistance to water ingress
Configurable CAN read & transmitted information
1 alternative configuration

Available Options

Engine	Alternator	Fuel System	Generating Set
Water Jacket Preheater	PMG excitation	12 / 24 hour base tank	Deepsea, ComAp, Smartgen etc. controller
Oil Preheater	Space heater	Bunded fuel tank	Trailer
Oil manual pump	Winding temperature measuring	External fuel tank	Tools with the machine
		Automatic fuel feeding
		Switch between external tank and base tank (three-way valve)
