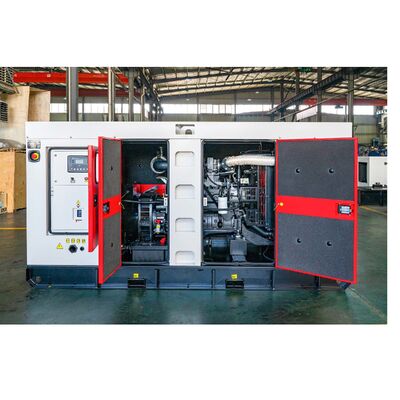

Our 720kW 900KVA BOBIG BAUDOUIN diesel generator (Model: 8M33G1000/5) is designed to provide reliable power for a wide range of applications. Backed by the renowned BAUDOUIN brand, it offers high-quality performance and long-term durability.
Rated Power: With a rated power of 720kW (900KVA), it can meet the power needs of various industrial, commercial, and residential applications. The prime power output is stable and efficient, ensuring continuous operation even under heavy loads.
Frequency: The generator operates at a standard frequency of 50Hz, which is suitable for most electrical equipment in the market.
Engine Model: Powered by the 8M33G1000/5 BAUDOUIN engine, it combines advanced technology and high-quality manufacturing. The engine is known for its high torque, fuel efficiency, and low emissions.
Engine Speed: Running at 1500 RPM, it provides a smooth and consistent power supply while minimizing wear and tear on the engine components.
| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 900 | 990 |
| Power Rating (kW) | 720 | 792 |
| Frequency (Hz) | 50 | |
| Engine Model | 8M33G1000/5 | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |

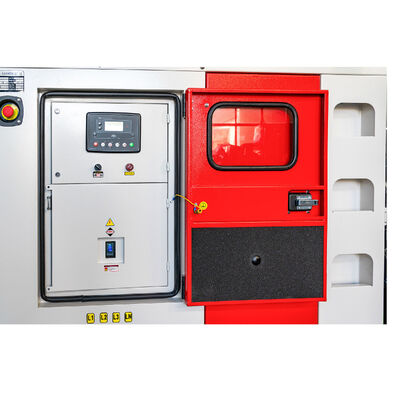

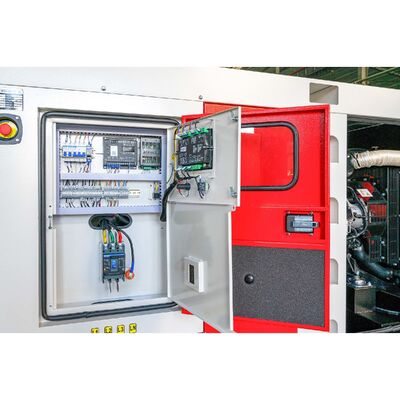

| Control System | Digital | |
| Rated Voltage (V) | 400/230 (According to customer requirements) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |

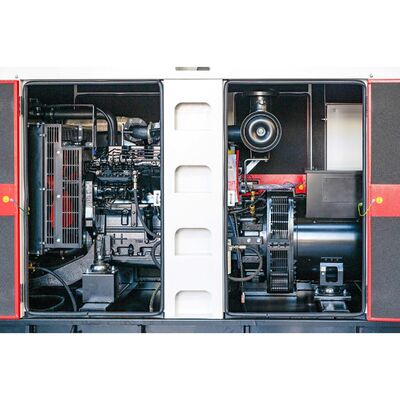

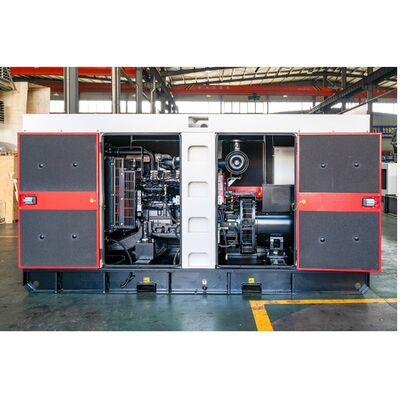

| Engine Model & Manufacturer | 8M33G1000/5 (BAUDOUIN) |
| Number of Cylinders / Valves | 8 / 32 |
| Cylinders Arrangement | At Vee |
| Bore x Stroke (mm) | 150 x 185 |
| Displacement (L) | 26.14 |
| Thermodynamic Cycle | Diesel 4 stroke |
| Firing Order | A1-B4-A4-A3-B2-A2-B3-B1 |
| Mean Piston Speed (m/s) | 9.25 |
| BMEP @ ESP (Bar) | 27.237949503 |
| Cooling System | Liquid (water + 50% antifreeze) |
| Injection System | Direct |
| Fuel System | Mechanical Pump |
| Aspiration | Turbocharged and Aftercooled |
| Compression Ratio | 15:1 |
| Flywheel Housing | SAE 0 |
| Flywheel | 18" |
| Rotation Viewed from Flywheel | Counter Clockwise |
| Number of Teeth on Flywheel Ring Gear | 194 |
| Inertia of Flywheel (kg•m²) | 6.47 |
| Inertia of Crankshaft (kg•m²) | 2.22 |
| Emission Standard | N/A |
| Overall Dimensions with Radiator (L×W×H mm) | 2550×1865×2016 |
| Engine Dry Weight without Radiator (kg) | 3100 |
| Engine Dry Weight with Radiator (kg) | 3500 |
| Engine Wet Weight with Radiator (kg) | 3752 |
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-404C |
| Alternator Rated Power | 720kW/900kVA |
| Rated Voltage (V) | 230V/400V |
| Rated Frequency | 50Hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%~+20% |

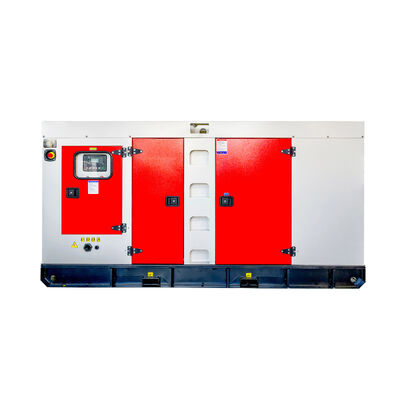

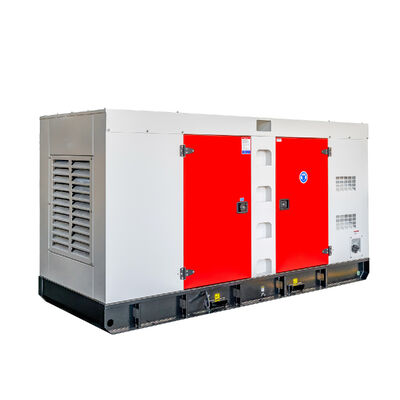

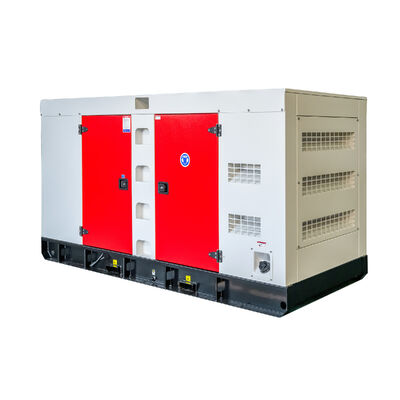

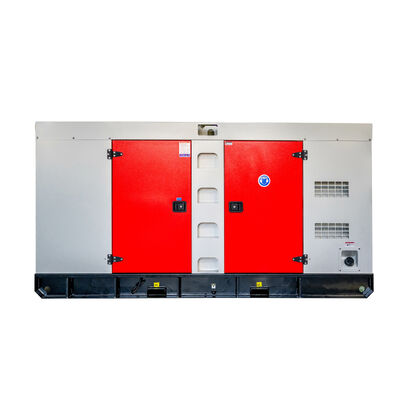

| Model | BBDA990 (Open Type) | BBDA990S (Silent Type) |
|---|---|---|
| Length (L) mm | 4150 | 5800 |
| Width (W) mm | 1550 | 2200 |
| Height (H) mm | 2550 | 2550 |
| Tank Capacity (L) | 1656 | 1656 |
Ambient Temperature: It can operate effectively in an ambient temperature range of +5°C to +40°C.
Altitude: The generator is suitable for use at altitudes of up to 1000m. If your environmental conditions are different, our sales team is ready to assist you with customized solutions.
This diesel generator is ideal for a variety of applications, such as:
BOBIG products have a guarantee for one year or 1000 hours (whichever comes first) from the ex-factory date. During the guarantee period, we provide free replacement of easy-damageable spare parts caused by production quality or raw material issues. After expiration, we provide cost-based spare parts maintenance.
Our professional after-sales service team is available 24/7 to provide technical support, maintenance, and repair services to ensure your peace of mind.
We are an electrical machinery manufacturer integrating technological research, production, and sales. With a total factory area of 10,000 square meters, including 1,000sqm standard construction area, we have 160 employees, among which 20 people are technicians.
Our main products include gasoline generators, diesel generators (5-2000kVA), gas generators, pumps, etc. Due to our advanced technique and devices, rich experience, reliable quality, considerate service and good teamwork, we have won a great reputation in the world market.
Adhering to the idea of "Quality, Creation, Service and Development", we keep the aim of updating technology, improving quality and providing better service all the time. We also have kinds of advanced equipment to test our products, such as CAD system, auto assembling & winding & inserting equipment, vacuum dipping system and digital testing equipment. We always control product quality strictly and our company has obtained ISO9000 Quality System Certification.
Our MOQ is only 1 set. Payment method usually is 30% T/T as deposit, 70% balance T/T before delivering. Or 100% L/C, trade assurance, PayPal, Western Union. Delivery period normally will be 10-15 working days after receiving customers' deposit.
Fuzhou port, Fujian province or as customer request.
We can provide regular engine's air filter, water filter, fuel filter, oil filter to customers for self-maintenance.
Yes, we can offer parts to you at any time, not limited in warranty time. Usually the parts can be sent out during 3-5 days.
Yes, they can be made according to your needs.
Welcomes everybody join us and distribute products worldwide. We can issue authority certificates and sign agreement with you accordingly.
